Beer Can Label Dimensions(Height, Width & Wrap Size Guide)

Proper sizing prevents waste, ensures regulatory compliance, and maximizes your design space for optimal consumer impact. This guide covers exact measurements, wrap styles, and calculation formulas used by professional breweries across America.

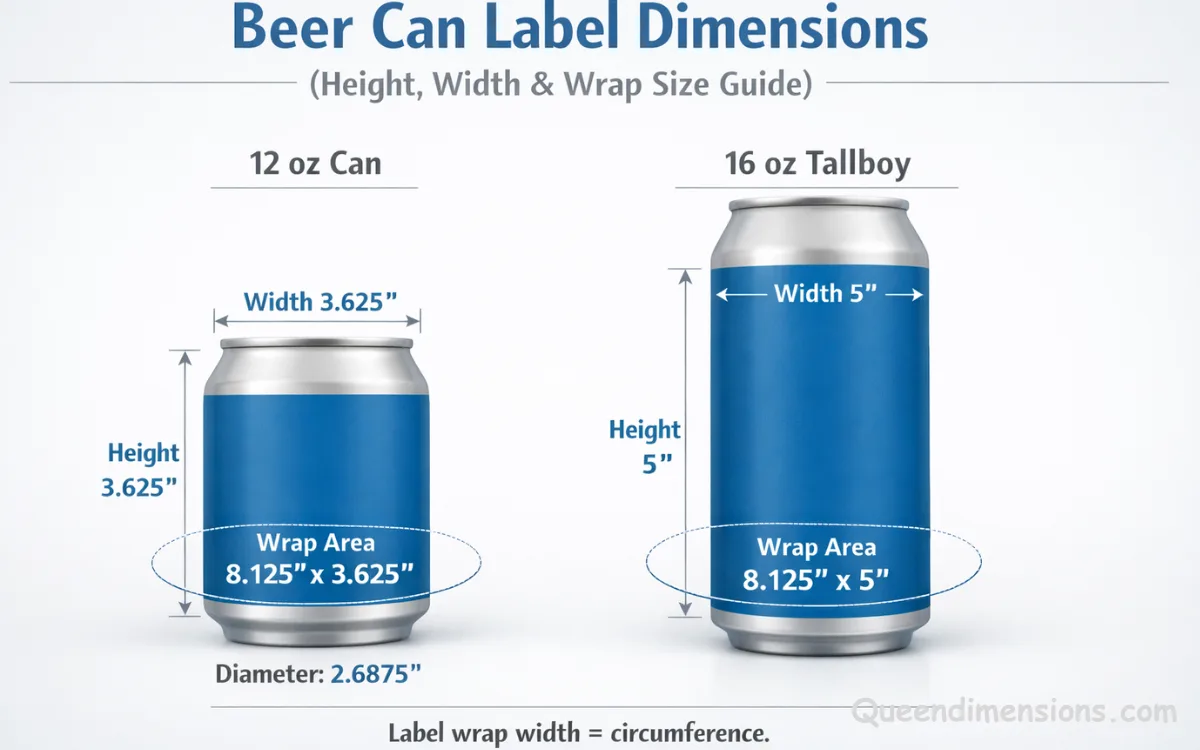

Standard Beer Can Sizes and Their Label Dimensions

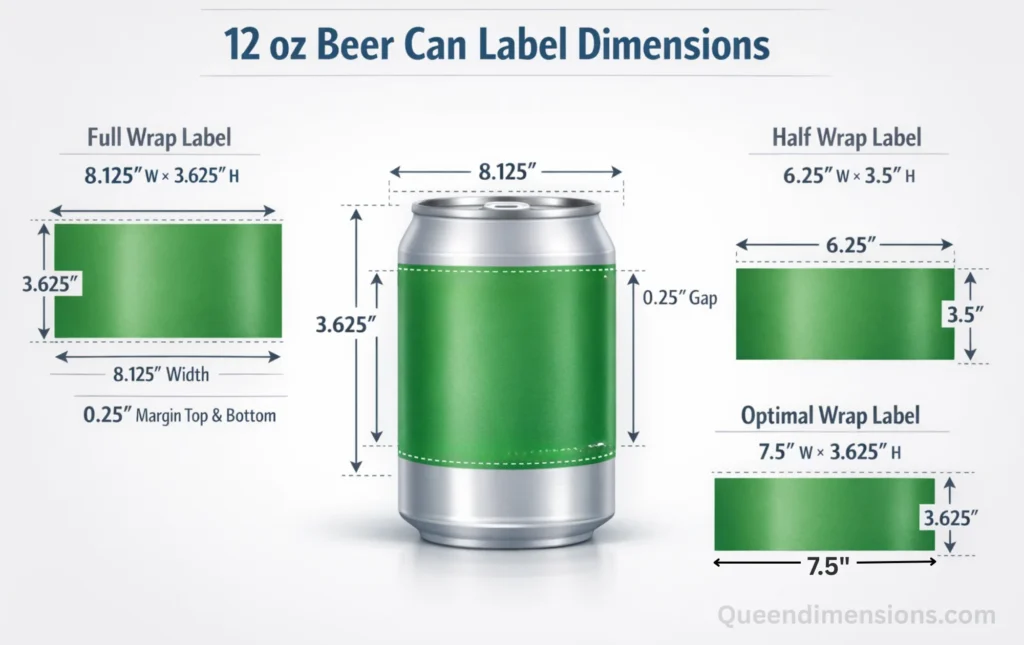

12 oz Beer Can Label Dimensions

Full wrap labels for 12 oz cans measure 8.125 inches wide by 3.625 inches tall. This size covers roughly 96% of the can’s circumference, leaving a clean 0.25-inch gap where ends meet.

Half wrap options reduce material costs at 6.25″ × 3.5″ dimensions. These labels cover only the front portion, showing more of the aluminum can surface. Optimal wrap sizing hits 7.5″ × 3.625″ for easier hand application while maintaining strong brand presence.

The 3.625-inch height became industry standard because it fits the straight body area of standard cans. This measurement leaves 0.25-inch margins at top and bottom, preventing contact with curved can ends.

16 oz Beer Can Label Dimensions (Tallboy/Pint Cans)

Tallboy cans need 5-inch tall labels to maintain visual proportion. The standard pint can label measures 8.125″ × 5″ for full wrap coverage, using the same width as 12 oz versions.

Design space increases by 1.375 inches vertically compared to standard cans. This extra height accommodates detailed artwork, extended ingredient lists, and compelling brand storytelling that captures consumer attention at point of sale.

Half wrap tallboy labels measure 6.25″ × 5″, while optimal sizing uses 7.25″ × 5″ dimensions. The taller format suits craft IPAs and premium offerings where extended label real estate justifies higher production costs.

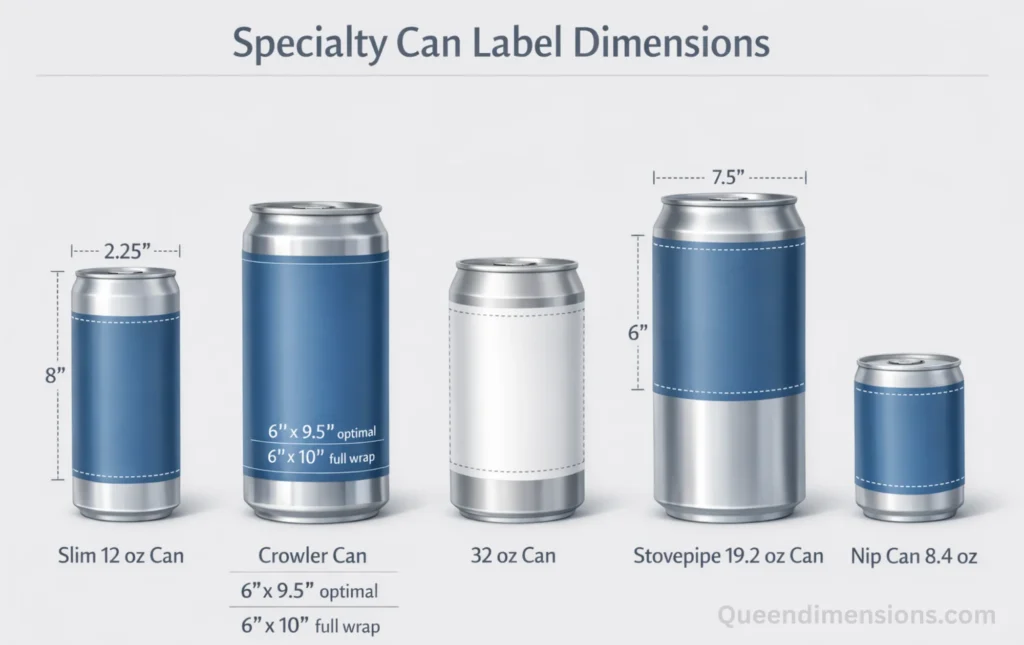

Specialty Can Label Dimensions

Slim 12 oz cans use drastically different sizing at 2.25″ × 8″ due to their 202 diameter (2.125 inches). These narrow cans suit session beers and premium small-batch releases where portion control matters.

Crowler labels dominate taproom to-go sales with 6″ × 9.5″ optimal or 6″ × 10″ full wrap dimensions. The 32 oz format requires custom measurement since multiple manufacturers produce slightly different can specifications.

Stovepipe 19.2 oz cans typically need 7.5″ × 6″ labels. Nip cans (8.4 oz) and other specialty formats demand verification with your specific supplier before ordering, as even 0.125-inch variations affect final appearance and application quality.

Double Size Bed And Mattress Dimensions(Size, Height, Length & Width)

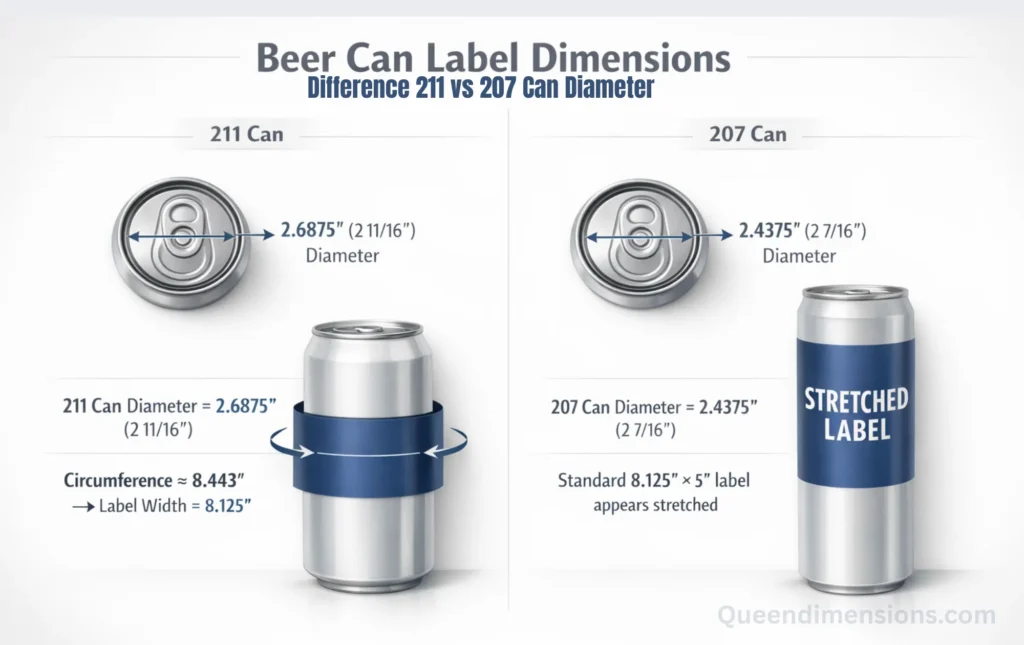

Difference 211 vs 207 Can Diameter

211 diameter translates to 2 and 11/16 inches or 2.6875 inches in decimal format. This measurement represents the can’s top diameter, which determines your label circumference calculations using the formula π × diameter.

Circumference for 211 cans equals 2.6875 × 3.1416 = 8.443 inches. Most breweries subtract 0.318 inches to reach the standard 8.125-inch label width, preventing overlap while maintaining clean visual separation where label ends meet.

207 cans emerged during post-2020 supply chain disruptions. These measure 2 and 7/16 inches (2.4375 inches) in diameter but stand taller to hold identical liquid volume. Standard 8.125″ × 5″ labels appear stretched on 207 cans, often requiring complete redesign and additional die costs.

Full Wrap vs Half Wrap vs Optimal Wrap Labels

Full wrap labels circle the entire can circumference with 0.25-0.375-inch overlap. This style maximizes design space for complex artwork and immersive branding but increases material costs by 30-40% compared to partial coverage options.

Half wrap designs cover roughly 50-60% of the can surface. They reduce label costs significantly while allowing the metallic can color to show through, creating minimalist aesthetics popular with session beers and light lagers.

Optimal wrap sizing balances coverage and application ease. The 7.5-inch width for 12 oz cans leaves a 0.943-inch gap, preventing alignment challenges during manual or automated application while maintaining strong shelf presence and brand recognition.

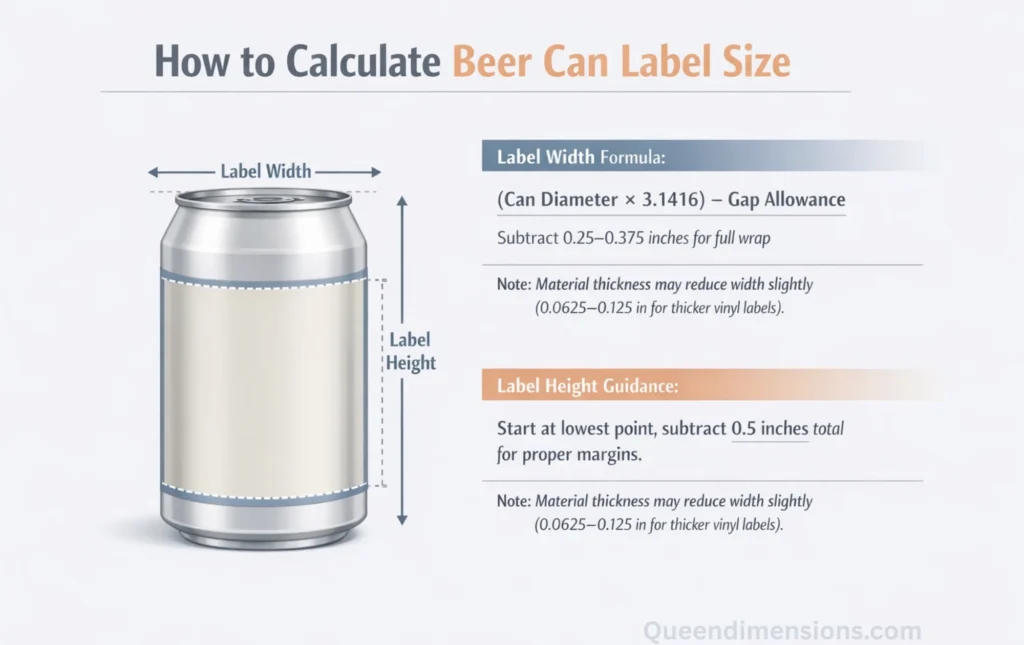

How to Calculate Beer Can Label Size

Label width formula: (Can Diameter × 3.1416) – Gap Allowance. For full wraps, subtract 0.25 to 0.375 inches for the gap. Half wraps require different calculations based on desired coverage percentage.

Height measurements start at the lowest point you want covered and extend upward. Subtract 0.5 inches total (0.25 inches top and bottom) to ensure proper margins away from can edges and curved end sections.

Material thickness affects final calculations. Vinyl labels at 3.5-4 mil thickness require 0.0625 to 0.125-inch width reductions compared to 2-3 mil paper labels to prevent bulky overlaps during application.

Full XL Bed And Mattress Dimensions(Size, Height, Length & Width)

FAQ‘s

What is the size of a beer can label?

The most common beer can label size measures 8.125″ × 3.625″ for standard 12 oz cans and 8.125″ × 5″ for 16 oz pint cans.

What are the dimensions of a can of beer?

Standard beer cans in the USA use 211 diameter sizing, equaling 2.6875 inches across with circumference of approximately 8.443 inches around.

What is the standard label size?

The industry standard label size is 8.125″ × 3.625″ for 12 oz and 8.125″ × 5″ for 16 oz cans, working with most application equipment.

How to calculate label size?

Multiply can diameter by 3.1416 (pi) for circumference, then subtract 0.25-0.375 inches for gap allowance to determine proper label width.

Can I print my own labels at home?

Home printing works for test batches under 100 labels but struggles with the 8.125-inch width due to desktop printer size limitations.

How thick are labels?

Beer can labels typically measure 2-4 mil thick, with paper at 2-3 mil and vinyl at 3.5-4 mil thickness.

What is a 211 can?

A 211 can has a diameter of 2 and 11/16 inches (2.6875 inches), representing the standard for most USA beer cans.

What are standard beer sizes?

Standard beer can sizes include 8 oz (237 ml), 12 oz (355 ml), 16 oz (473 ml), 19.2 oz (568 ml), and 32 oz crowlers (946 ml).

Conclusion

Perfect beer can label dimensions require precise measurements and industry standard knowledge.

The 8.125″ × 3.625″ size for 12 oz cans and 8.125″ × 5″ for 16 oz work for 90% of craft breweries. Always verify your specific can diameter before ordering labels, test with paper templates first, and request physical proofs to prevent expensive production mistakes.
